sound_factories.json

Source reference

Sound factories are the heart of most sound effects generated by Dynamic Surroundings. A factory combines a sound event with information that describe the properties of that sound when played. For example, a factory could generate a sound using the same sound event, but with varying pitch and volume.

The schema for a sound factory entry is as follows:

{
    "location": "namespace:path",
    "soundEvent": "namespace:path",
    "volume": 1.0,
    "pitch": 1.0,
    "category": "AMBIENT",
    "isRepeatable": false,
    "repeatDelay": 0,
    "global": false,
    "attenuation": "LINEAR",
    "music": null
}

Sound Factory Configuration

Property	Value Type	Comment
location	ResourceLocation	The resource location ID of the sound factory. It should be unique across configurations. It is a required property. Most configuration rules refer to a factory by this ID.
soundEvent	ResourceLocation	The sound event that the factory will produce. It is a required property.
volume	FloatProvider	The volume scale to apply to the sound when playing. The value can either be a float, or a range with min/max. Default is 1.0.
pitch	FloatProvider	This pitch at which to play the sound. The value can either be a float, or a range with min/max. Default is 1.0.
category	String	The category to which the sound will belong when played. Default is AMBIENT.
isRepeatable	Boolean	Whether the sound should be marked as repeatable (looped) when played. Default is false.
repeatDelay	Integer	The tick delay between plays for a repeatable sound. Default is 0.
global	Boolean	Whether the sound is considered global or not. Default is false.
attenuation	String	Attenuation of the sound. Default is LINEAR.
music	Music	Properties to apply when the music manager plays the sound as music. This property is optional. See below for more details.

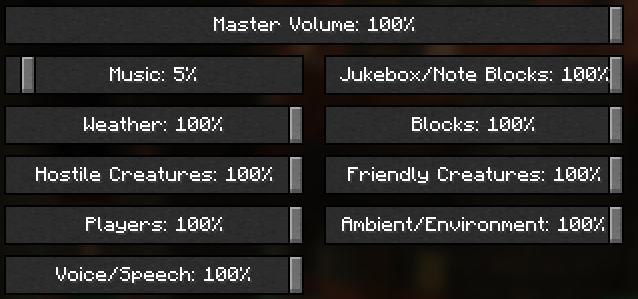

category can be one of the following: MASTER, MUSIC, RECORDS, WEATHER, BLOCKS, HOSTILE, NEUTRAL, PLAYERS, AMBIENT, and VOICE. The category property matches a sound source in the sound options dialog, and will be scaled by the amount specified by the sound source.

attenuation is either LINEAR or NONE. Most sounds are LINEAR, meaning the volume is linearly scaled based upon the distance from the player. Most sounds in Minecraft are LINEAR. NONE are for sounds that do not concern themselves with distance. Such sounds are things like music, button clicks, and background sound tracks.

volume and pitch are special in that they can either have a single float value, or have a range. If a range is specified, when a sound instance is created a random value is selected from the range. By varying volume and pitch in this fashion complex sounds can be layered to give an overall sound impression. For example, waterfall splash sounds have varying pitch. If the pitch were not varied, an artificial harmonic would be introduced which is not enjoyable.

The range is specified like the following:

"volume": {
    "min": 0.8,
    "max": 1.2
}

When a sound instance is created, the volume will be between 0.8 and 1.2 inclusive.

Configuring Music

Any sound factory can be used to generate music. However, it would be expected that a sound factory would be set up specifically for music since the actual sound files would be encoded using stero and at higher sampling rates.

{
    "music": {
        "min_delay": 6000,
        "max_delay": 24000,
        "replace_current_music": false
    }
}

Music Configuration

Property	Value Type	Comment
min_delay	Integer	TBD
max_delay	Integer	TBD
replace_current_music	Boolean	TBD
